Continuous carbonization furnace

Author: Admin View: Post Time: 2016 / 12 / 23

Continuous carbonization furnace

Working principle of Continuous carbonization furnace:
        This machine is equipped with: Auto-feeding Conveyor,Biomass Gasifier equipment, Dust-Removal Device,Gas cleaner system, PLC touchscreen manual automatic dual-use electric control cabinet, Cooling and         Discharging Conveyor,Carbonization furnace and other equipments.
        Burning the raw material inside of the gasification furnace (as sawdust, shell, Palm shell, husk, straw, wood scrap etc.), the produced flue gas in pipeline within after spray pour, cooling purification, became combustible gas (carbon monoxide, methane, ethane,), as early carbonization of heat, heating and carbonizing the raw material inside of the carbonization furnace(as mechanism core rod, abandoned logs, bark, coconut shell, life garbage,etc.)
        When the temperature reached to 300 degrees Celsius, carbonization furnace starting carbonizing of raw materials, producing smoke; flue gas become into a combustible gas after spray pour, cooling purification by the cooling purification system, continue carbonizing, then gasifier stop working.

Continuous carbonization furnace

Continuous carbonization furnace

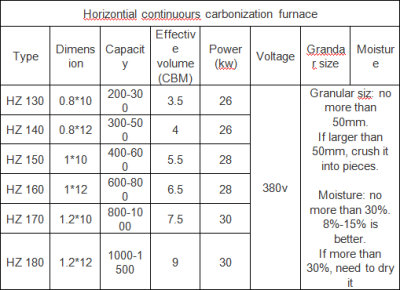

Technical parameters of Continuous carbonization furnace:

Continuous carbonization furnace

Continuous carbonization furnace

Continuous carbonization furnace

Continuous carbonization furnace

Differences from usual carbonization furnace/stove:
        1. Continue working, one side to feed sawdust one side to get charcoal
        2. High capacity, one machine can get output 1.8-12 tons per 8 hours
        3. Energy saving, it used itself smoke to make ,and also no smoke outside
        4. Operation: it is easy to operate by a manual automatic dual-use electric control cabinet

The advantages of the continuous carbonized furnace/stove
        1.None stoping,working for 24 hours
        2.Large capacity,one day can reach to 4.8 -36 tons/ 24 hours
        3.Environmental protection,burn the furnace smoke itself,so no smoke go out
        4.Energy saving,burn smoke as power.
        5.Make sawdust ,rice hush,coconut shell,,,ect into charcoal timely

Continuous carbonization furnace Performance features:
        1.)The combustible gas made by self generated flue gas can be used recycling, gasifier slag can be used as charcoal powder, direct sales, to achieve the effect of energy saving;
        2.)The whole process without flue gas emissions, meet the national environmental protection requirements;
        3.)Carbonizing out the maximum yield of charcoal in the shortest time, working continuously for 24 hours;
        4.)2 people can operate the whole production line, easy to operate and maintenance, high production and efficiency;
        5.)By-products:wood tar refining diesel oil, wood vinegar liquid can be used as pesticide, will waste to exploit to the greatest extent, no waste.

Continuous carbonization furnace Application
        Our  continuous carbonization stove/furnace is mainly used for carbonizing:
        Almost all of the Biomass Straw,Friut Husk,and Wood Scraps.
        Such as Sawdust,Rice Husk,Groundnut Shell,Plants Straw, Tree Bark,Grinded Coconut shell,Bamboo dust,Bagasse,Cotton Stalk,Coffee Husk,Mustard Husk/Stalk,Pine Needles,Sugar Mill Waste,Jute Waste,Coir Pith and other wastes&residues like Castor Shell,Red Gram Stalk,Tobacco Stem,Tea Waste,Sander Dust,Wild Grasses,Shrubs and Sander dust etc.
        The Granule size of all aboved raw material should be less than 50 mm;if more than 50mm, configure a crusher.

Continuous carbonization furnace

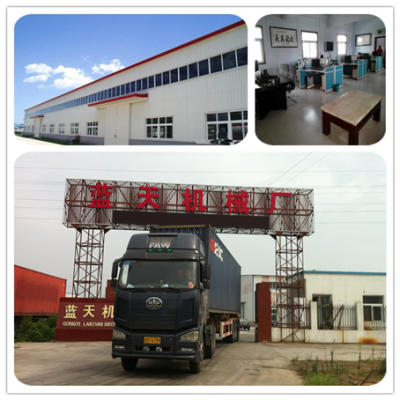

Factory
        1. Established in 1980s, our company covers an area of 100,000 square meters which includes 66,000 square meters of workshops. We have the most advanced technology, most strict process, from material purchase to the finished products, all strictly according to the national quality inspections standards.It mainly specilize in charcoal making machine, sawdust briquette machine,briquette machine,powder making machine,extruder machine, BBQ machine,honeycomb briquette machine,carbonization furnace,heat pump dryer and so on.
        2. As manufactures, we have more than 30 years of experience, our products all achieved patent certificates, and our company has many times achieved the title of honer: " Observe Contract and Keep Promise" " Quality Trustworthy Product" "Good After-sales Service Reputation", etc.

Continuous carbonization furnace
