Sawdust briquette carbonization furnace

Product Description

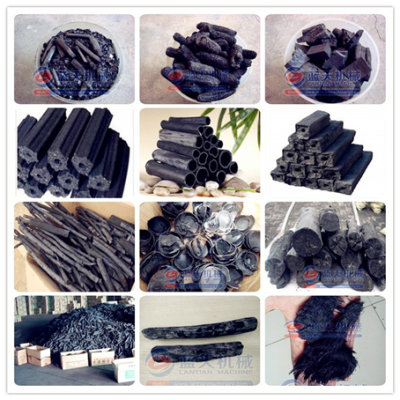

        The final Sawdust briquette carbonization furnace production line:

Sawdust briquette carbonization furnace

1.Introduction of Sawdust briquette carbonization furnace:
        The airflow charcoal manufacturing oven is our new invent, which is also combined type. The charcoal can be hoisted outside, in this way the cooling time can be reduced much, thus, the productive efficiency increases a lot. It is the ideal choice for mass production of charcoal.
        This type of furnace adopts the structure of unique air storage chamber, to fully reuse the smoke produced during the process of carbonization. And 60% of the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process, and increasing the enterprise revenue.

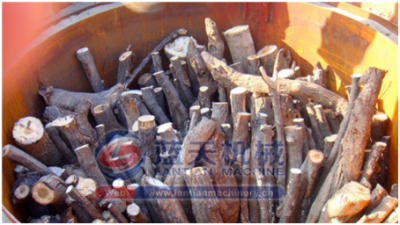

Raw materials of Sawdust briquette carbonization furnace:
        1. Tree branches whose diameter is more than 30mm.
        2. Some nut shells, such coconut shell, walnut shell, etc.
        3. Biomass briquettes made from sawdust, small agriculture wastes.

Sawdust briquette carbonization furnace

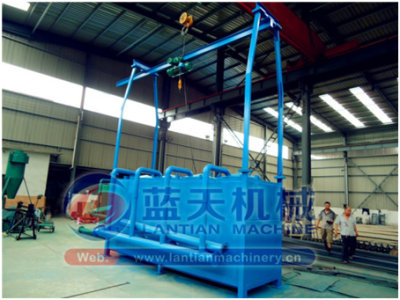

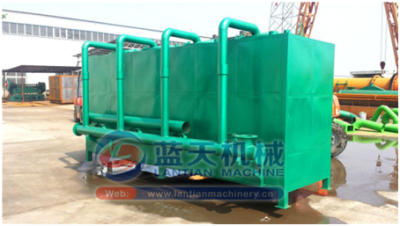

Square type:

Sawdust briquette carbonization furnace

Sawdust briquette carbonization furnace

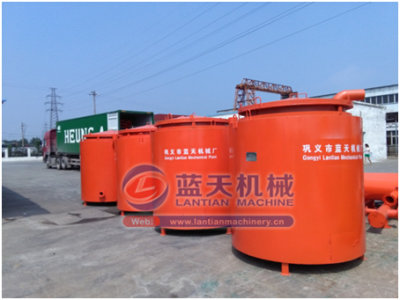

Round type:

Sawdust briquette carbonization furnace

Sawdust briquette carbonization furnace

2.The main parts of Sawdust briquette carbonization furnace:
        (1) Outer stove:
        Includes heating room (for heating the inner stove), furnace body and heat-keeping layer (it is made of the heat insulating material)

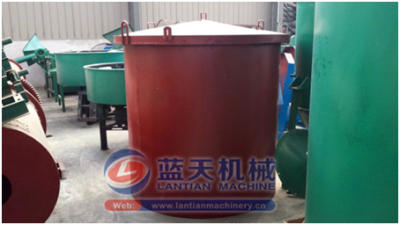

        (2) Inner stove:
        Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel, three inner stove can be stacked together for saving space and shipping cost.
        (3) Smoking recycle tube.
        During the process of carbonizing, there will be some smoke.( can be burning) the smoke can be collected and returned to the furnace.
        (4) Purification tank.
        This system is consisting of purification tank and the exhaust-heated cycle pipe.
        (5) Hoisting equipment.
        It include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove.

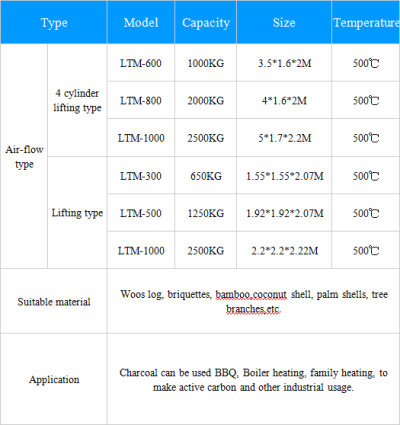

3.Parameter of Sawdust briquette carbonization furnace:

Sawdust briquette carbonization furnace

        PS 1: Load 2.5tons machine-made briquettes, 8hours will get 1000kg machine-made charcoal.
        PS 2: Load 2tons natural wood, 8-10hours will get 600kg-800kg natural charcoal.
        PS 3: Normally it takes 8-10hours. Maybe longger for fresh wood to remove moisture.
        PS 4: Heat value: 5500-7000KCAL / KG
        PS 5: Raw material: Machine-made charcoal, wood ,coconut shell, wood briquette, bamboo, almond shell, plam shell,
        PS 6: Operation: one people one shift ( one day two shift)
        PS 7: Energy consumption 20-30kg firewood or 15kg liquid gas.

4.How to produce charcoal? It divides into three processes:
        (1). Heat.
        After sealing work, use wooden wastes or gas to heat furnace. Primarily, 10 minutes big fire to burn, when the temperature reaches 90 degrees centigrade, turn to use slow fire to heat. It takes 80-120minutes for this process to reduce water vapor from your materials.
        (2). Pyrolyse.
        Keep heating, when the temperature reaches 180-235 degrees centigrade for 3-5hours, it will produce gas from this process. Reuse this gas as fuel to heat. The whole process is about 8hours. When the temperature reach highest and it reduces, the dry distillation process will finished.

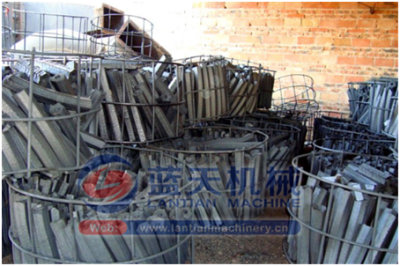

        (3). Cooling.
        Hang the Inner pot outside, and seal the pipes of cover. Let it cool naturally. Cooling time is longer, the quality of charcoal is good. When the temperature lowers than 50 degree, you can take charcoal out. Otherwise, the charcoal will burn again when met oxygen of air.

Sawdust briquette carbonization furnace

Sawdust briquette carbonization furnace

Sawdust briquette carbonization furnace

5.Gas purifier of Sawdust briquette carbonization furnace:
        It is used to eliminate the smoke produced by the wood charcoal carbonization stove, and also it can turn the smoke and some other soluble organic maters into fuel, or some other energy, it is really an environment protect and energy

Sawdust briquette carbonization furnace

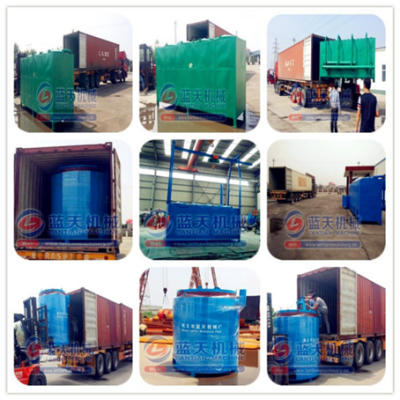

Packaging & Shipping

Sawdust briquette carbonization furnace

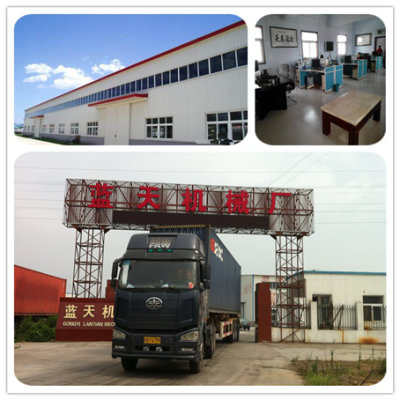

Factory
